• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209623

• • Brand: B&O

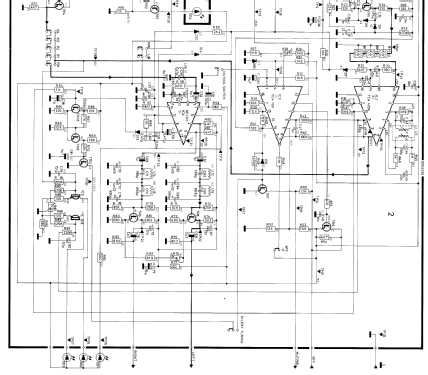

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Beomaster 1500 2629 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 90 x 270 mm / 19.7 x 3.5 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
