• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209880

• • Brand: B&O

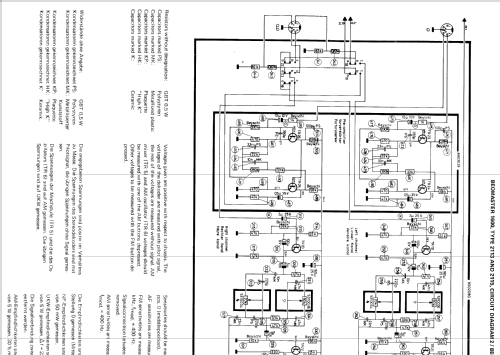

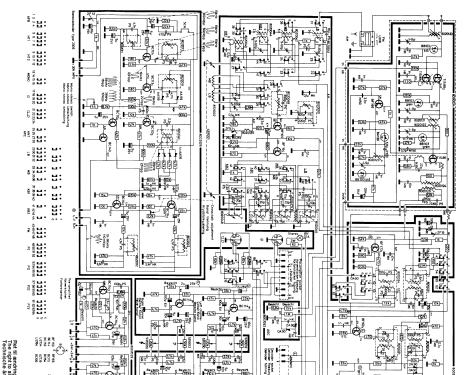

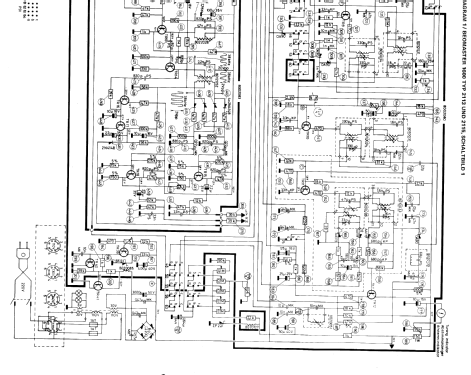

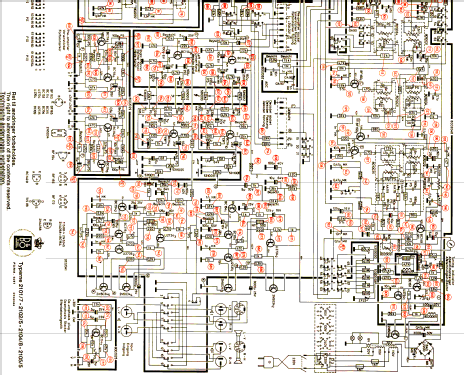

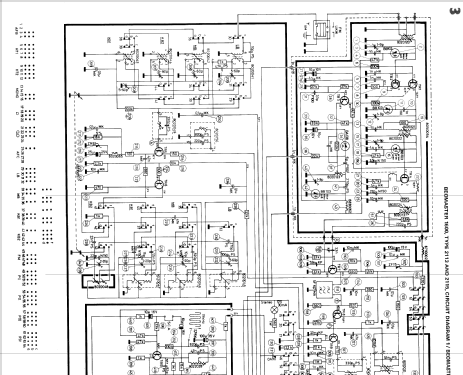

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: Beomaster 1600 K 2115 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 744 x 112 x 226 mm / 29.3 x 4.4 x 8.9 inch

• Notes
• Wie Beomaster 1600 M mit eingebauten Ovallautsprechern.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
