• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1984–1991

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206972

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240/ 6x1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

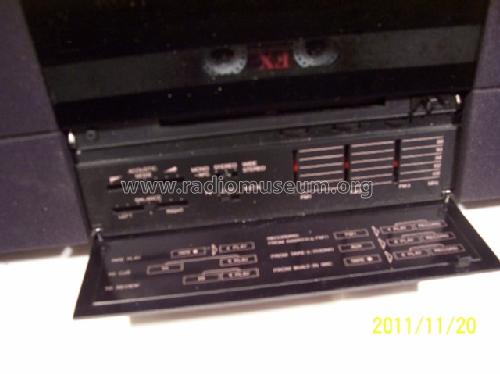

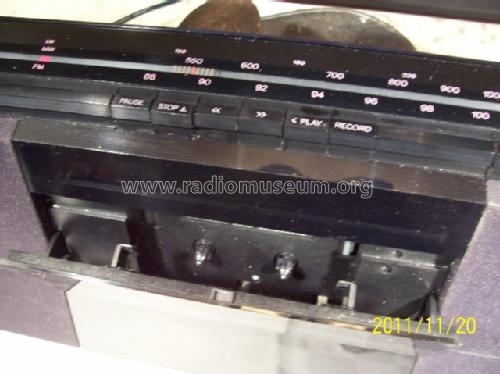

• Model: Beosystem 10 1521 - Bang & Olufsen B&O; Struer

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 505 x 240 x 70 mm / 19.9 x 9.4 x 2.8 inch

• Notes
• MW 520-1610khz; LW 147-350khz; Stereo FM 87,5-108 Mhz, 3 einstellbare Fixstationen für UKW, Teleskopantenne Mono-Stereo Taste- Spatialstereo Balanceregler. Tape recorder: 60-14.000 Hz; wow and flutter DIN < 0,25% Signal-to-noise ratio>54db Ferro-chome-metal; Microphones Built-in, L and R. Anschlüsse: ext.LS, Kopfhörer, ext. Taperecorder, ext. Netzgerät 9V.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Anton Sarne. See "Data change" for further contributors.
