Beovision MX5000 USA 3250

Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822830) Television Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822829) Television
Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822832) Television Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822833) Television
Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822835) Television
Use red slider bar for more.
Beovision MX5000 USA 3250; Bang & Olufsen B&O; (ID = 822830) Television
Bang & Olufsen B&O;: Beovision MX5000 USA 3250 [Television] ID = 822830 423x426
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beovision MX5000 USA 3250, Bang & Olufsen (B&O); Struer:
Ebay US 270634499562 oldskoolmodern adopted pics.

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1988–1991 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker 2 Loudspeakers / Ø 7.5 cm = 3 inch
Power out
from Radiomuseum.org Model: Beovision MX5000 USA 3250 - Bang & Olufsen B&O; Struer
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 647 x 673 x 476 mm / 25.5 x 26.5 x 18.7 inch
Notes Bang & Olufsen MX5000, USA 3250;

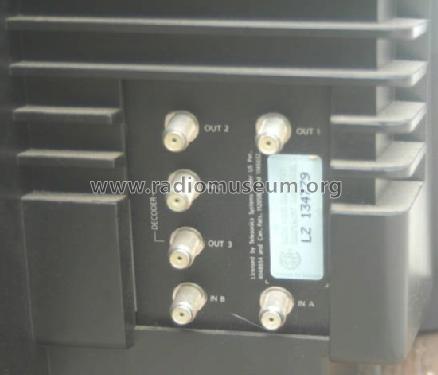

70 (66) cm 110° NTSC Colour TV, A/V Scart, AF Cinch & DIN terminals, S-Video in, F-terminals, (manufacturing date Nov. 1989 proven), 150 W power consumption, note eight further non-USA MX5000 versions.
Net weight (2.2 lb = 1 kg) 48 kg / 105 lb 11.6 oz (105.727 lb)
Mentioned in - - Manufacturers Literature (Beoworld Website)

Model page created by a member from A. See "Data change" for further contributors.
