Beovox 2400 6214-12

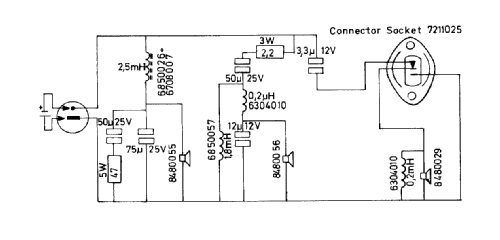

Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 1136066) Speaker-P
Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 2058399) Speaker-P Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 2058401) Speaker-P
Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 2058402) Speaker-P Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 2058403) Speaker-P
Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 1136065) Speaker-P
Use red slider bar for more.
Beovox 2400 6214-12; Bang & Olufsen B&O; (ID = 2058399) Speaker-P
Bang & Olufsen B&O;: Beovox 2400 6214-12 [Speaker-P] ID = 2058399 768x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beovox 2400 6214-12, Bang & Olufsen (B&O); Struer

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1969 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Beovox 2400 6214-12 - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 600 x 240 x 275 mm / 23.6 x 9.4 x 10.8 inch
Notes Druckkammergehäuse, Gehäusevolumen 25 Liter, 3 Lautsprecher, Anschlussbuchse für zusätzlichen Hochtonlautsprecher vorhanden, Impedanz 4 Ohm, Frequenzgang 40 bis 18000 Hz. Ausführung: Teak, Palisander oder Eiche.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- Original-techn. papers.

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
