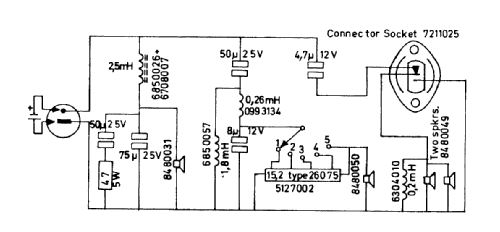

Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 1125464) Speaker-P

Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 1125465) Speaker-P
Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991731) Speaker-P Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991732) Speaker-P
Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991495) Speaker-P Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991733) Speaker-P
Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991734) Speaker-P Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991735) Speaker-P
Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991736) Speaker-P Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991737) Speaker-P
Use red slider bar for more.
Beovox 5000 6206 6216 6223; Bang & Olufsen B&O; (ID = 991731) Speaker-P
Bang & Olufsen B&O;: Beovox 5000 6206 6216 6223 [Speaker-P] ID = 991731 525x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beovox 5000 6206 6216 6223, Bang & Olufsen (B&O); Struer

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1967 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 7 or more Loudspeakers
Power out
from Radiomuseum.org Model: Beovox 5000 6206 6216 6223 - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 470 x 730 x 325 mm / 18.5 x 28.7 x 12.8 inch
Notes Beovox 5000 Types: 6206, 6216, 6223.
Beovox 5000 was the ideal loudspeaker for the Beolab system.

It had a special bass unit with an extended bass reproduction range, two mid-range units and four high-frequency units. There was provision for individual of mid-range and high-frequency levels and a socket for a high-frequency diffuser (Beovox 2500).

There were three differing incarnations during its life: the first had seven drivers incorporated within its 66 litre cabinet. Available in three different finishes, the B&O logo was gold-plated. Beovox 5700 was the replacement for these high-quality units when their lifespan came to an end.

Music load: 80 watts
Continuous load 50 watts (DIN 45,573)
Frequency response: 25 - 20,000 Hz (DIN 45,570)
Distortion Max: 1 % (DIN 45,403)
Sensitivity: 2 watts (DIN 45,500)
Crossover frequency: 500/2500 kHz
Capacity: 66 litres
Resonance of woofer: 18 - 20 Hz
Dispersion: 120°
Number of units (early Types):
Bass unit: 1 - 30cm
Mid-range: 1 - 12,5 x 18cm
Tweeter: 3 - dome
Connections: Output Tweeter 4 Ω
Input DIN socket - 4 Ω.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)

Model page created by Marco Vienna. See "Data change" for further contributors.
