Mini 43

Mini 43; Bang & Olufsen B&O; (ID = 1085115) Radio
Use red slider bar for more.

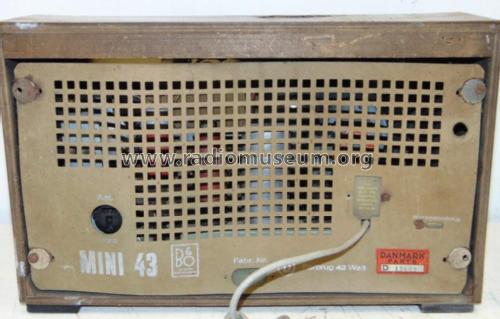

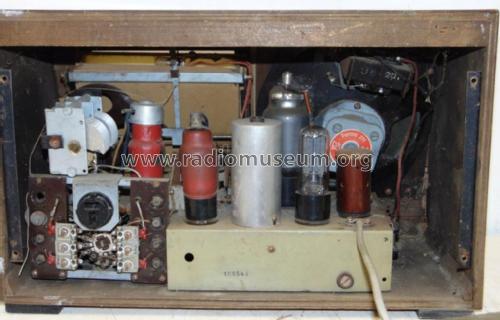

Mini 43; Bang & Olufsen B&O; (ID = 1085115) Radio
Bang & Olufsen B&O;: Mini 43 [Radio] ID = 1085115 395x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini 43, Bang & Olufsen (B&O); Struer:
B&O Katalog
Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH4 UCH4 UBL1 UY1
Main principle Superheterodyne (common)
Power type and voltage AC/DC-set / 110-240 Volt
Power out
from Model: Mini 43 - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Tablemodel, with any shape - general.
Price in first year of sale 388.00 KR
External source of data B&O Modellkatalog (1943)

Model page created by Hermann Jung. See "Data change" for further contributors.

All listed radios etc. from Bang & Olufsen (B&O); Struer
Here you find 451 models, 383 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
