Standard 39R

Standard 39R; Bang & Olufsen B&O; (ID = 1254028) Radio

Standard 39R; Bang & Olufsen B&O; (ID = 1254029) Radio

Standard 39R; Bang & Olufsen B&O; (ID = 1254030) Radio

Standard 39R; Bang & Olufsen B&O; (ID = 1254031) Radio
Standard 39R; Bang & Olufsen B&O; (ID = 347381) Radio Standard 39R; Bang & Olufsen B&O; (ID = 347382) Radio

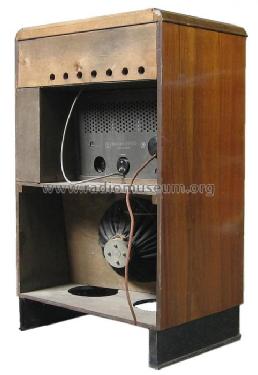

Standard 39R; Bang & Olufsen B&O; (ID = 347383) Radio Standard 39R; Bang & Olufsen B&O; (ID = 206063) Radio
Standard 39R; Bang & Olufsen B&O; (ID = 347384) Radio
Use red slider bar for more.
Standard 39R; Bang & Olufsen B&O; (ID = 347381) Radio
Bang & Olufsen B&O;: Standard 39R [Radio] ID = 347381 484x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Standard 39R, Bang & Olufsen (B&O); Struer:
By courtesy of Lauritz.com (Bild bearbeitet)

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6K7G 6Q7G 25A6G 25Z6G
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Standard 39R - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 650.00 KR
External source of data B&O Katalog (1943)
Source of data -- Original-techn. papers.

Model page created by Hermann Jung. See "Data change" for further contributors.



All listed radios etc. from Bang & Olufsen (B&O); Struer
Here you find 451 models, 383 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
