Synchrobox 4001

Synchrobox 4001; Bang & Olufsen B&O; (ID = 1059411) Misc
Synchrobox 4001; Bang & Olufsen B&O; (ID = 1062233) Misc
Use red slider bar for more.
Synchrobox 4001; Bang & Olufsen B&O; (ID = 1062233) Misc
Bang & Olufsen B&O;: Synchrobox 4001 [Misc] ID = 1062233 614x302

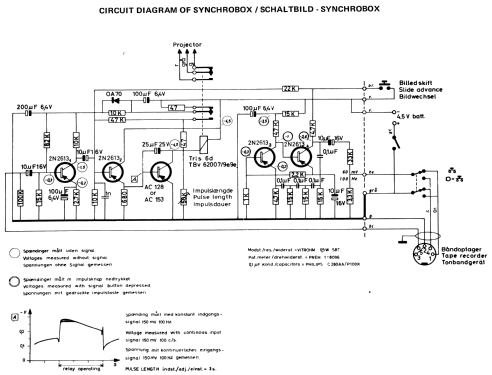

Select picture or schematic to display from thumbnails on the right and click for download.
For model Synchrobox 4001, Bang & Olufsen (B&O); Struer:
Verkaufskatalog

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1960 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 5:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / 4,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Synchrobox 4001 - Bang & Olufsen B&O; Struer
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 167 x 41 x 84 mm / 6.6 x 1.6 x 3.3 inch
Notes Zur Steuerung von Diaprojektoren durch Spulentonbandgeräte.
Source of data -- Collector info (Sammler)

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
