• Year
  • 1946 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 332916

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 482 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

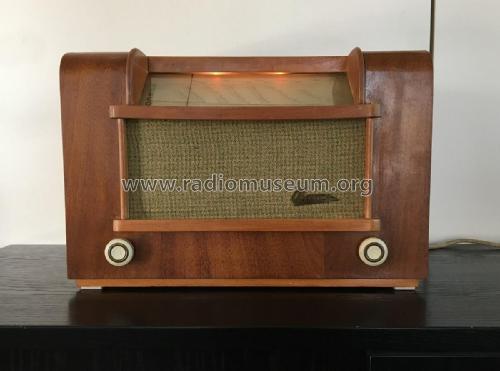

  • Model: A491P - Barco, Belgian American Radio
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 300 x 230 mm / 18.1 x 11.8 x 9.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 10.6 kg / 23 lb 5.6 oz (23.348 lb)
  • Author
  • Model page created by Rolf Beckers. See "Data change" for further contributors.
