32 coffret arrondi

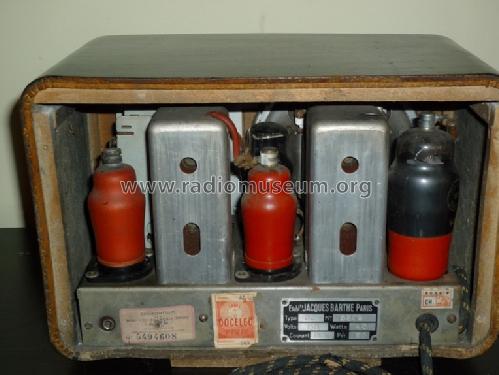

32; Barthe Radio, Barthe (ID = 1498875) Radio 32; Barthe Radio, Barthe (ID = 1498876) Radio
32; Barthe Radio, Barthe (ID = 1498877) Radio 32; Barthe Radio, Barthe (ID = 1498881) Radio
Use red slider bar for more.
32; Barthe Radio, Barthe (ID = 1498875) Radio
Barthe Radio, Barthe: 32 [Radio] ID = 1498875 855x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model 32 coffret arrondi, Barthe Radio, Barthe-Audio; Paris, Saint-Martin-de-Londres

Country:  France
Manufacturer / Brand:  Barthe Radio, Barthe-Audio; Paris, Saint-Martin-de-Londres
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 CBL6 CY2
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 32 [coffret arrondi] - Barthe Radio, Barthe-Audio;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 180 x 160 mm / 10.6 x 7.1 x 6.3 inch
Notes

Voir aussi modèle 32 en coffret rectangulaire.

Literature/Schematics (1) -- Original prospect or advert (Toute la Radio, Juin 1949)

Model page created by Lorenzo Guadagnucci. See "Data change" for further contributors.
