• Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 270525
    • Brand: Eskafon

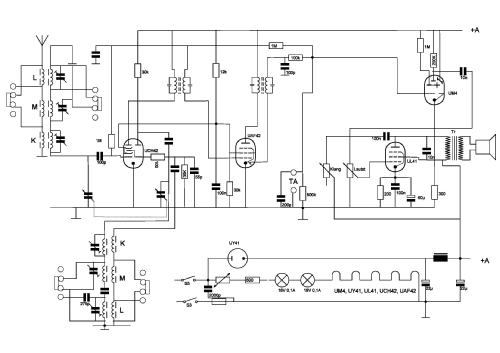

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 268 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Grenzlandsuper 267 GWK - Bayerwald Rundfunk-Industrie,
  • Dimensions (WHD)
  • 450 x 325 x 235 mm / 17.7 x 12.8 x 9.3 inch
  • Notes
  • UM4 wird als NF-Vorstufe verwendet

  • Author
  • Model page created by Michael Heller. See "Data change" for further contributors.
