• Year
  • 1951 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 115333

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org

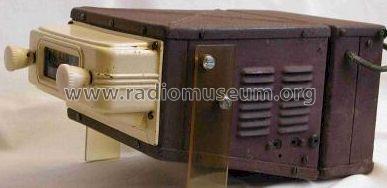

  • Model: Avus 51 AR5164 - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 157 x 130 x 160 mm / 6.2 x 5.1 x 6.3 inch
  • Notes
  • Becker Avus 51 AR 5164 hat ein getrenntes Stromversorgungsteil, was in Einblockausführung hinten auch fest angebaut sein kann. Die gesamte Tiefe kann mit Skalenaufbau und Knöpfen bis zu 295 mm betragen.
    Lautsprecher ist im Hauptgerät.
  • Price in first year of sale
  • 242.00 DM
  • Literature/Schematics (1)
  • -- Schematic
