• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1955–1963

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 21091

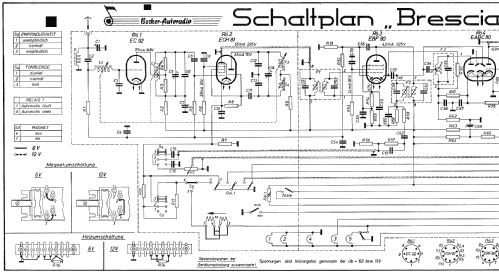

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EC92 ECH81 EBF80 EABC80 ECC85 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.7 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Brescia [ECC85, ab 102125 und 104076] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 184 x 54 x 134 mm / 7.2 x 2.1 x 5.3 inch

• Notes
• Becker Brescia.
  Automatische Sendereinstellung mit Fernbedienungsmöglichkeit; Anschlüsse automatische Antenne und KW-Adapter.
  12-V-Ausführung auch mit Gegentaktendstufe (ECC83, 2× EL84) lieferbar.
  Zerhackerteil: 250×119×88 mm.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 525.00 DM

• External source of data
• Erb

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1955/56 (bis 1962/63)
