• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1956 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 137659

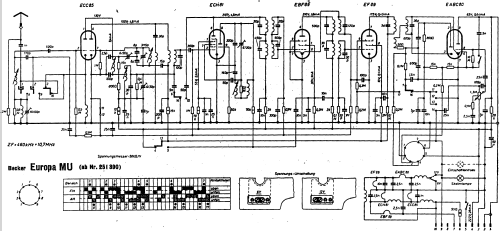

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.7 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Europa MU [ab Nr. 251390] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 181 x 52 x 174 mm / 7.1 x 2 x 6.9 inch

• Notes
• Umrichter mit Endstufe separat. Exportmodell, UKW bis 108 MHz

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Rigo Janscheidt † 27.7.18. See "Data change" for further contributors.
