For model MONACO Mercedes 220CA 1xKW; 7 Rö, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim:

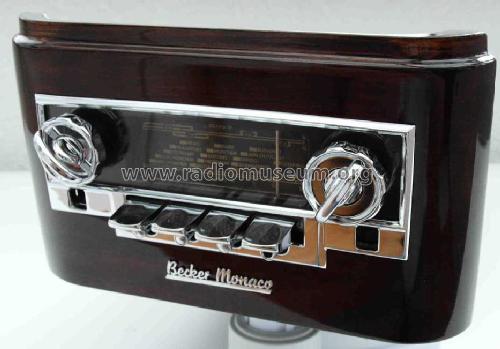

Ausführung mit Blende für Mercedes W187

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1953/1954 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 7: ECH42 EF41 EBF80 EAF42 EC92 EL41 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (unknown quality)
from Radiomuseum.org Model: MONACO Mercedes 220CA [1xKW; 7 Rö] - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 194 x 105 x 355 mm / 7.6 x 4.1 x 14 inch
Notes Druckguß-Gehäuse mit schwarzer Buchenholz-Frontplatte. Zwei separate Lautsprecher (4 W, 18 cm Ø oder Ovallautsprecher 4 W, 5 Ohm 212×152 mm, 2. LS: 4 W, 95 mm Ø) im Lieferumfang. 3 Stationstasten.
Im Vorjahr andere Röhrenbestückung und 2 KW-Bereiche.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data HdB d.Rdf-& Ferns-GrH 1953/54
