Monza EAF42 ohne Uhr ab 60001

Monza EAF42 ohne Uhr; Becker, Max Egon, (ID = 125316) Car Radio

Monza EAF42 ohne Uhr; Becker, Max Egon, (ID = 688721) Car Radio
Use red slider bar for more.
Monza EAF42 ohne Uhr; Becker, Max Egon, (ID = 125316) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1951 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: ECH42 EAF42 EAF42 EL41
Semiconductors (the count is only for transistors) WGZ6/3,5 Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 473 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Monza EAF42 ohne Uhr [ab 60001] - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Notes Einfachausführung ohne Uhr und Netzteil.
Source of data Radiokatalog Band 2, Ernst Erb

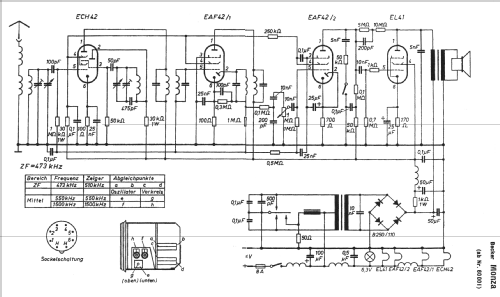

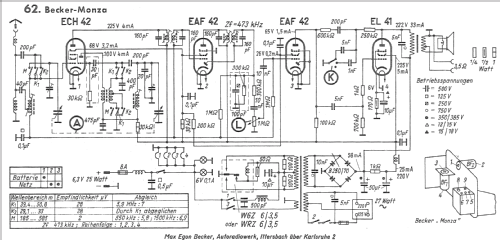

Mentioned in -- Schematic

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
