• Year
  • 1951/1952
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 14022

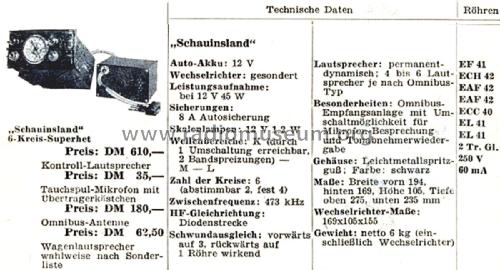

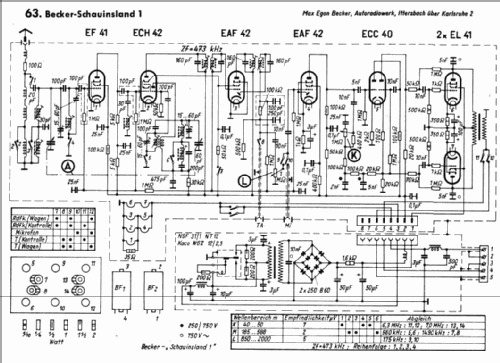

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 473 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Schauinsland I - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 170 x 105 x 275 mm / 6.7 x 4.1 x 10.8 inch
  • Notes
  • Omnibus-Empfangsanlage mit Umschaltmöglichkeit für Mikrofon-Besprechung und Tonabnehmerwiedergabe; 4 bis 6 Lautsprecher je nach Omnibus-Typ.
  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 610.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Lange Schaltungen der Funkindustrie, Buch 1
