• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203123

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6U7G 6A8G 6U7G 6Q7G 6G5 or 6H5 6N6G 5Z4G

• Main principle
• Superhet with RF-stage; ZF/IF 445 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120; 135; 150; 225; 250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiobell Confort 638 de Luxe [6U7G] - Bell Telephone Mfg. Co.

• Shape
• Console: Chairside Radio.

• Notes
• Same chassis as Radiobell 638A [6U7G].

• Price in first year of sale
• 7,500.00 BFR

• Source of data

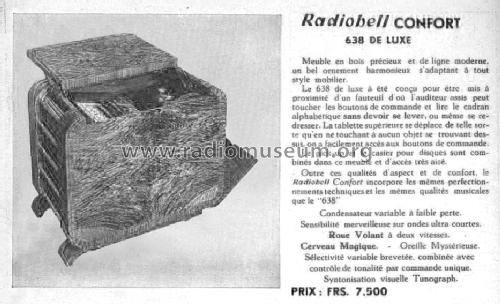

• -- Original prospect or advert

• Mentioned in
• Manuel de la Radio 1940, van Cortenberghe

• Other Models

• Here you find 284 models, 244 with images and 118 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
