• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1966 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 342081

• • Brand: Radiobell

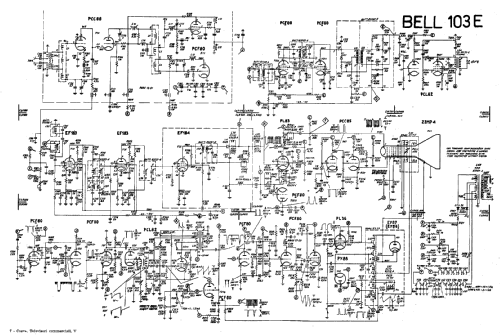

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC88 PCF80 PCF80 PCL82 EF183 EF183 EF184 PL83 PCC85 PCF80 PCF80 PCL82 PCF80 PCF80 PL36 PY88 EY87 23MP4

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 165; 190; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: VHF TV 103E - Bell Telephone Mfg. Co.

• Notes

• Black/white TV only VHF.

• Mentioned in
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, 1966.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
