Hi Fidelity 2300

Hi Fidelity 2300; Bell Sound Systems; (ID = 2639146) Ampl/Mixer Hi Fidelity 2300; Bell Sound Systems; (ID = 2639583) Ampl/Mixer
Hi Fidelity 2300; Bell Sound Systems; (ID = 2639580) Ampl/Mixer Hi Fidelity 2300; Bell Sound Systems; (ID = 2639581) Ampl/Mixer
Hi Fidelity 2300; Bell Sound Systems; (ID = 2639148) Ampl/Mixer Hi Fidelity 2300; Bell Sound Systems; (ID = 2639147) Ampl/Mixer
Use red slider bar for more.

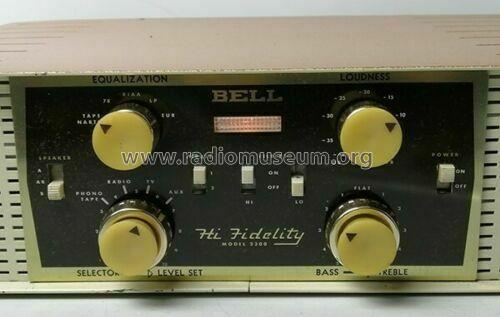

Hi Fidelity 2300; Bell Sound Systems; (ID = 2639146) Ampl/Mixer
Bell Sound Systems;: Hi Fidelity 2300 [Ampl/Mixer] ID = 2639146 500x253
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi Fidelity 2300, Bell Sound Systems; Columbus (OH):
aus ebay, #153976543728, Verkäufer jpanime2014

Country:  United States of America (USA)
Manufacturer / Brand:  Bell Sound Systems; Columbus (OH)
Year: 1958 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 7: ECC83 ECC83 ECC83 12AV6 6L6GB 6L6GB 5U4GB
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (undistorted)
from Radiomuseum.org Model: Hi Fidelity 2300 - Bell Sound Systems; Columbus
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 15.6 x 4 x 11.4 inch / 396 x 102 x 290 mm
Notes

Integrated amplifier, mono; phono equalization 78, RIAA, LP, EUR.

Mentioned in -- Original prospect or advert

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Bell Sound Systems; Columbus (OH)
Here you find 106 models, 102 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
