RE-CORD-O-fone RT-65

Bell Sound Systems; Columbus (OH)

Daten

Forum

Bilder

Sammlungen

Land
USA

Hersteller / Marke
Bell Sound Systems; Columbus (OH)

Jahr
1952/1951 ?

Kategorie
Ton-/Bildspeichergerät oder -Spieler

Radiomuseum.org ID
128972

Bilder
Schaltpläne

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 3060506) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 3060507) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 3060508) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 3060509) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 3060510) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 439989) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 439990) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 439991) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 439992) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845470) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845471) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845472) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845473) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845474) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845475) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845476) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845477) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845478) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845479) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845480) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 845481) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (3)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 1246382) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 1246383) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 1246384) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 439993) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)
SAMS

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 1246385) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)

RE-CORD-O-fone RT-65; Bell Sound Systems; (ID = 1246387) Ton-Bild — Bell Sound Systems; RE-CORD-O-fone RT-65 (2)

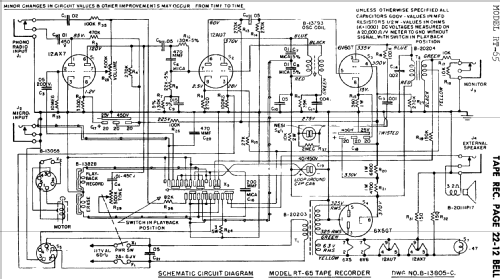

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

Technische Daten

Anzahl Röhren
4

Röhren
12AX7 12AU7 6V6GT 6X5GT

Hauptprinzip
NF-Verstärkung

Wellenbereiche
- ohne

Spezialitäten
Tonbandgerät

Betriebsart / Volt
Wechselstromspeisung / 60 Hz, 117V = 110 -120 Volt

Lautsprecher
Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 6 inch = 15.2 cm

Belastbarkeit / Leistung
3.5 W (Qualität unbekannt)

Material
Diverses Material

von Radiomuseum.org
Modell: RE-CORD-O-fone RT-65 - Bell Sound Systems; Columbus

Form
Tischmodell, Zusatz nicht bekannt - allgemein.

Bemerkung
The Bell Sound model RT-65 is an AC operated tape recorder in a portable cabinet with handles.
Power consumption 90 W; tape speed 7 1/2 inches per second; 5 or 7 inch reels; phono / radio and microphone input.

Schaltungsnachweis
Rider's Perpetual, Volume 22, covering 1951

Literatur/Schema (1)
Photofact Folder, Howard W. SAMS (Date 4-51, set 130, folder 4)

Literatur/Schema (2)
Photofact Folder, Howard W. SAMS (Set 171, folder , dated 6-52)

Autor
Modellseite von Ernst Erb angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.

Weitere Modelle
Hier finden Sie 116 Modelle, davon 112 mit Bildern und 70 mit Schaltbildern.
Alle gelisteten Radios usw. von Bell Sound Systems; Columbus (OH)

Sammlungen | Museen | Literatur

Forum
