• Country
• United States of America (USA)

• Manufacturer / Brand
• Belmont Radio Corp. (B.R.C.); Chicago, Ill.

• Year
• 1946 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34066

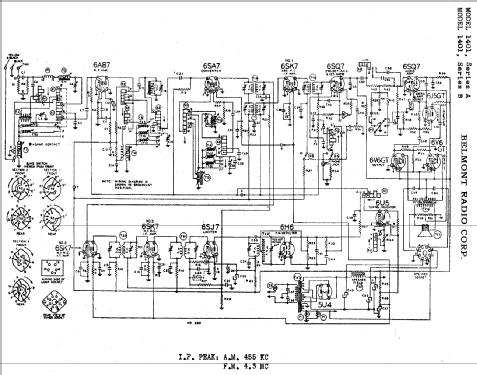

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6AB7 6SA7 6SK7 6SQ7 6U5 6SQ7 6J5GT 6V6GT 6V6GT 6SK7 6SK7 6SJ7 6H6 5U4

• Main principle
• Superhet with RF-stage; ZF/IF 4300 & 455 kHz

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• from Radiomuseum.org
• Model: 1401 Ch= Series B - Belmont Radio Corp. B.R.C.;

• Notes
• Built in loop antenna.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Other Models

• Here you find 442 models, 207 with images and 383 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Belmont Radio Corp. (B.R.C.); Chicago, Ill.
