• Country
• Spain

• Manufacturer / Brand
• Bettor, Industrias; Barcelona

• Year
• 1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 294654

• Number of Transistors
• 7

• Semiconductors
• SC108 SC108 PTO AC187 AC188 AC126 AC188

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

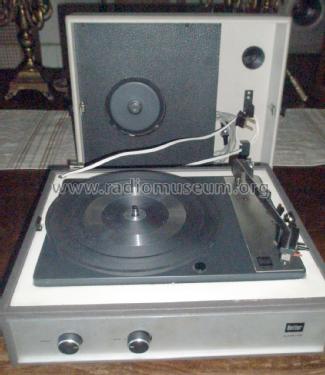

• Model: Mark 62 - Bettor, Industrias; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 160 x 280 mm / 13.4 x 6.3 x 11 inch

• Notes

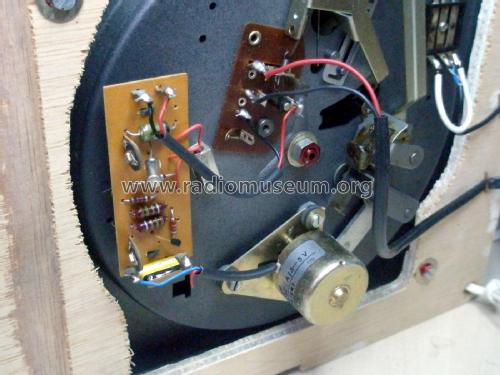

• El plato es Dual 420, con motor DC.

  La cápsula es Dual CDS 650.

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
