581

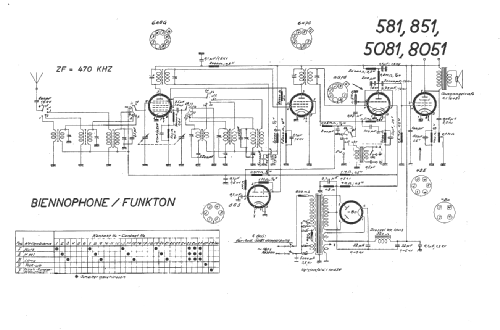

581; Biennophone; Marke (ID = 14974) Radio

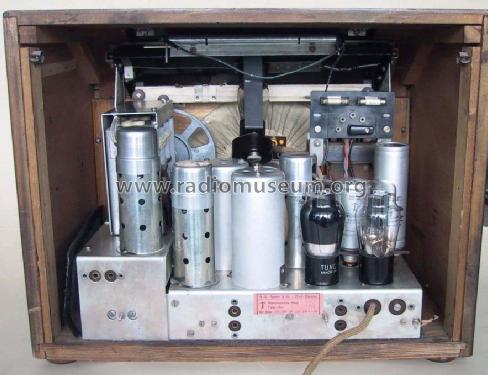

581; Biennophone; Marke (ID = 104982) Radio 581; Biennophone; Marke (ID = 104983) Radio

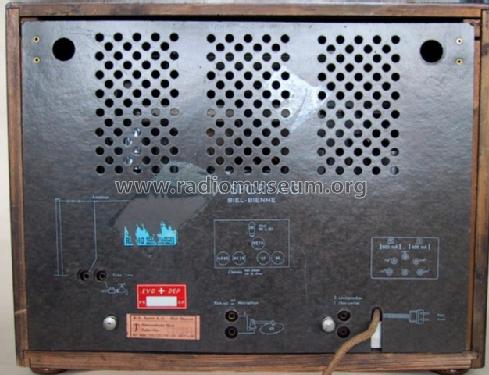

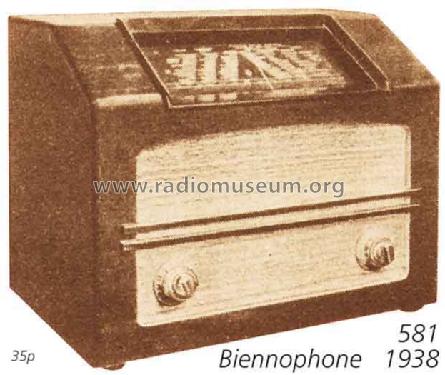

581; Biennophone; Marke (ID = 104984) Radio 581; Biennophone; Marke (ID = 1425) Radio
Use red slider bar for more.

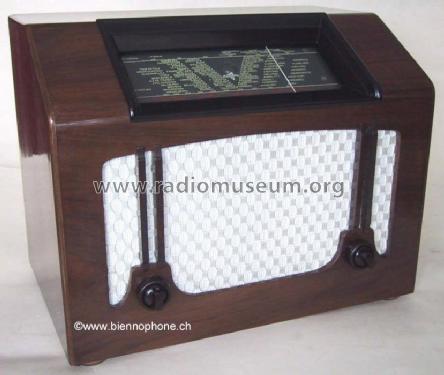

581; Biennophone; Marke (ID = 104982) Radio
Biennophone; Marke: 581 [Radio] ID = 104982 830x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 581, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6Q7G 42E 6G5 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 581 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 340 x 280 mm / 17.1 x 13.4 x 11 inch
Notes Skala oben, schräg
Price in first year of sale 348.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Biennophone; (Marke)
Here you find 493 models, 267 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
