- Country
- Switzerland
- Manufacturer / Brand
- Biennophone; (Marke)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212109
-
- alternative name: Sport AG Biel || Velectra AG
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

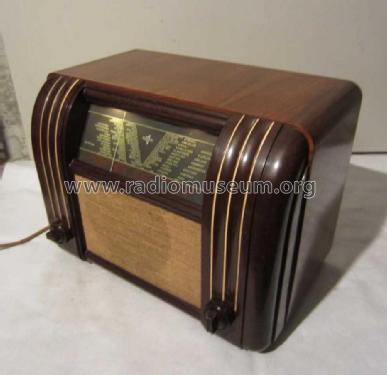

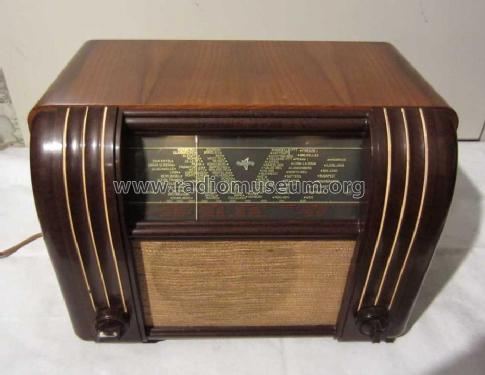

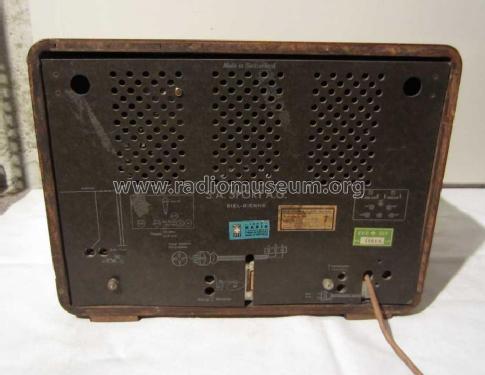

- Model: 590 - Biennophone; Marke
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 325 x 300 mm / 17.3 x 12.8 x 11.8 inch
- Notes
- Holzgerät mit rundlicher Bakelitfront
- Author
- Model page created by Walter Haring. See "Data change" for further contributors.
