• Country
• Switzerland

• Manufacturer / Brand
• Biennophone; (Marke)

• Year
• 1939–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11540

• • alternative name: Sport AG Biel || Velectra AG

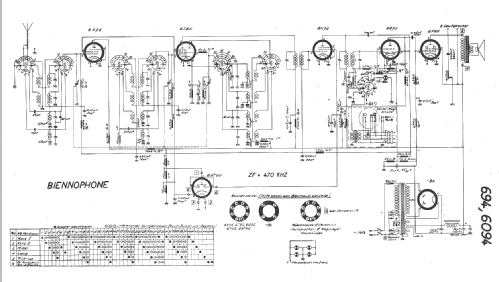

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7G 6J8G 6K7G 6Q7G 6AF6G 6V6G 80

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 694 - Biennophone; Marke

• Dimensions (WHD)
• 550 x 385 x 256 mm / 21.7 x 15.2 x 10.1 inch

• Notes
• zwei senkr. Skalen aussen!

• Price in first year of sale
• 452.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 510 models, 291 with images and 347 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
