Crans 47HL -PR

Crans 47HL; Biennophone; Marke (ID = 291218) Radio
Crans 47HL; Biennophone; Marke (ID = 65449) Radio Crans 47HL; Biennophone; Marke (ID = 65451) Radio
Crans 47HL; Biennophone; Marke (ID = 65450) Radio Crans 47HL; Biennophone; Marke (ID = 965850) Radio
Crans 47HL; Biennophone; Marke (ID = 1241132) Radio Crans 47HL; Biennophone; Marke (ID = 1241134) Radio
Crans 47HL; Biennophone; Marke (ID = 1241137) Radio Crans 47HL; Biennophone; Marke (ID = 1241138) Radio
Crans 47HL; Biennophone; Marke (ID = 2500964) Radio Crans 47HL; Biennophone; Marke (ID = 2500966) Radio
Use red slider bar for more.

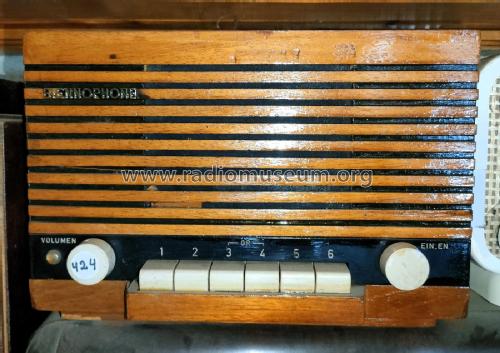

Crans 47HL; Biennophone; Marke (ID = 65449) Radio
Biennophone; Marke: Crans 47HL [Radio] ID = 65449 760x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model Crans 47HL -PR, Biennophone; (Marke):
Biennophone Crans Mod. 47HL

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1963–1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: ECC85 ECL86
Semiconductors (the count is only for transistors) SFD108
Main principle TRF with diode detector
Wave bands Long Wave and/or Very Low Frequency (VLF).
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Crans 47HL [-PR] - Biennophone; Marke
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 262 x 174 x 130 mm / 10.3 x 6.9 x 5.1 inch
Notes HF-TR für 6 Programme (Langwellenbereich).
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
