Fabio-Koffer 5930

Fabio-Koffer 5930; Biennophone; Marke (ID = 595205) Radio

Fabio-Koffer 5930; Biennophone; Marke (ID = 595206) Radio

Fabio-Koffer 5930; Biennophone; Marke (ID = 1205824) Radio
Fabio-Koffer 5930; Biennophone; Marke (ID = 1450) Radio Fabio-Koffer 5930; Biennophone; Marke (ID = 13402) Radio

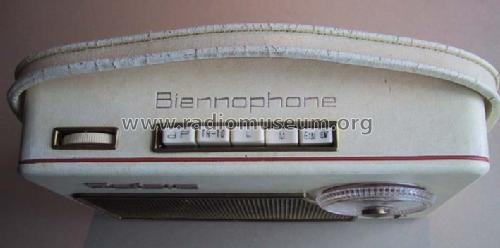

Fabio-Koffer 5930; Biennophone; Marke (ID = 13403) Radio
Use red slider bar for more.
Fabio-Koffer 5930; Biennophone; Marke (ID = 1450) Radio
Biennophone; Marke: Fabio-Koffer 5930 [Radio] ID = 1450 548x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fabio-Koffer 5930, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA70
Main principle Super-Heterodyne (Super in general)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Wired Wireless Receiver (RF!)
Power type and voltage Storage and/or dry batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Fabio-Koffer 5930 - Biennophone; Marke
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 250 x 170 x 65 mm / 9.8 x 6.7 x 2.6 inch
Notes Schaltung in Funkschau
Price in first year of sale 248.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Biennophone; (Marke)
Here you find 493 models, 267 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
