HF-Telefonrundspruch-Gerät 47

HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 56811) Radio HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 56812) Radio
HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 56813) Radio HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 49481) Radio

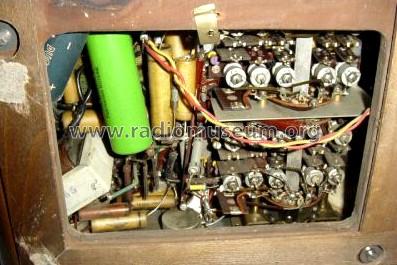

HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 49482) Radio HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 49483) Radio
HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 49484) Radio
Use red slider bar for more.
HF-Telefonrundspruch-Gerät 47; Biennophone; Marke (ID = 56811) Radio
Biennophone; Marke: HF-Telefonrundspruch-Gerät 47 [Radio] ID = 56811 933x607
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF-Telefonrundspruch-Gerät 47, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1947–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6SK7GT 6Q7 6V6GT 5Y3GT
schematic requested
Main principle TRF with diode detector
Wave bands Long Wave and/or Very Low Frequency (VLF).
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: HF-Telefonrundspruch-Gerät 47 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 280 x 205 mm / 18.1 x 11 x 8.1 inch
Notes HF-Telefonrundspruch-Gerät
Nur Langwelle.
Price in first year of sale 365.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
