Minitix "Senderbaustein" UKS 15
Bitter, Radio-; Dortmund
- Country
- Germany
- Manufacturer / Brand
- Bitter, Radio-; Dortmund
- Year
- 1962
- Category
- Amateur Transmitter (only)
- Radiomuseum.org ID
- 167915
- Number of Tubes
- 4
- Main principle
- Transmitter
- Tuned circuits
- 4 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

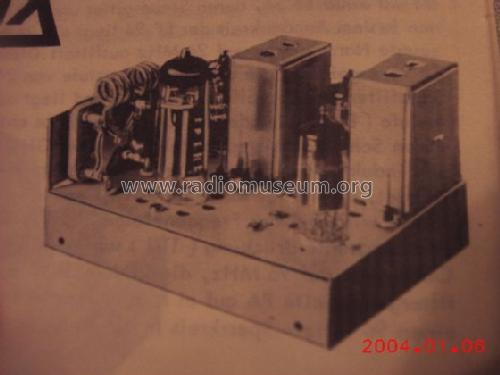

- Model: Minitix "Senderbaustein" UKS 15 - Bitter, Radio-; Dortmund
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 102 x 105 x 132 mm / 4 x 4.1 x 5.2 inch
- Notes
- Der Minitix Senderbaustein UKS 15 für das 2m Band ist dem im Sender UKS 3 von MINITIX verwendeten Steuersender sehr ähnlich. Er kann mit 6, 8 oder 12 MHz-Quarzen betrieben werden. Ausgangsleistung 12 - 15 Watt. Anschluß für Anoden-Schirmgitter-Modulation, z.B. mit dem Modulator-Baustein MV 15.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 127.00 DM
- Mentioned in
- Inserat DL-QTC 9/62
- Literature/Schematics (1)
- Katalog Klaus Conrad Hirschau ( ca. 1964 )
- Author
- Model page created by Armin Eppinger. See "Data change" for further contributors.
