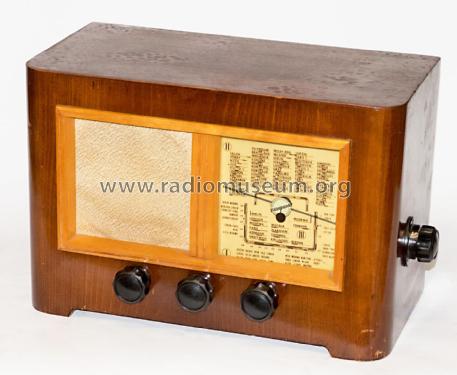

5GW648; Blaupunkt Ideal, (ID = 64874) Radio
Blaupunkt Ideal,: 5GW648 [Radio] ID = 64874 931x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5GW648 ohne Magischem Auge, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH11 UBF11 UCL11
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif. U2410PL
Main principle Super-Heterodyne (Super in general); ZF/IF 468 or 473 kHz
Tuned circuits 6 AM circuit(s)

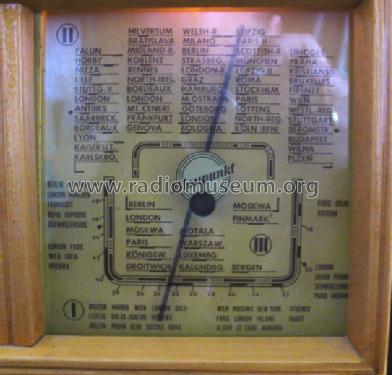

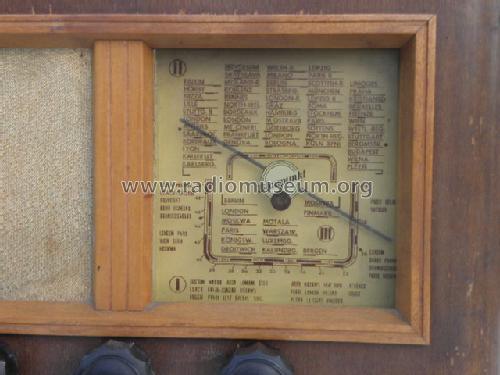

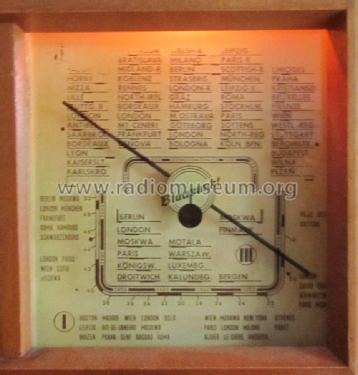

Wave bands Broadcast, Long Wave and Short Wave.
Details

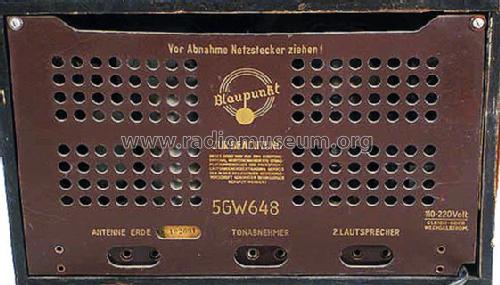

Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 5GW648 [ohne Magischem Auge] - Blaupunkt Ideal, Berlin,

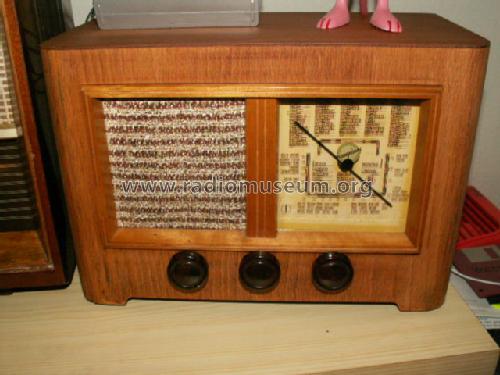

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 320 x 215 x 165 mm / 12.6 x 8.5 x 6.5 inch
Notes

Ch= T499GW.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Collectors' prices

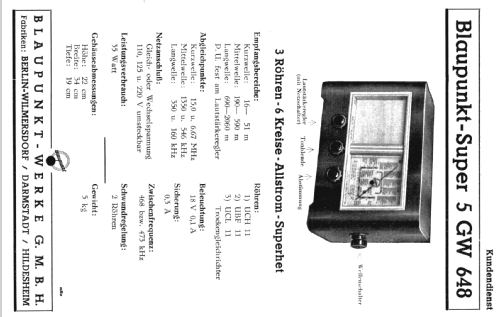

Source of data Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4710)
Literature/Schematics (1) -- Original-techn. papers.
