• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 735

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EF9 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

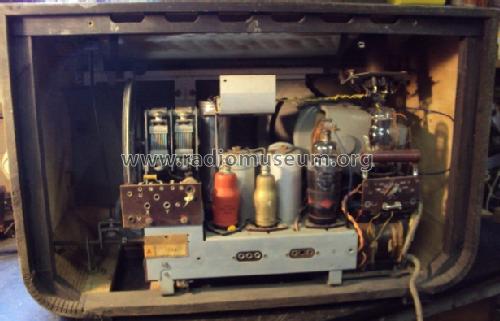

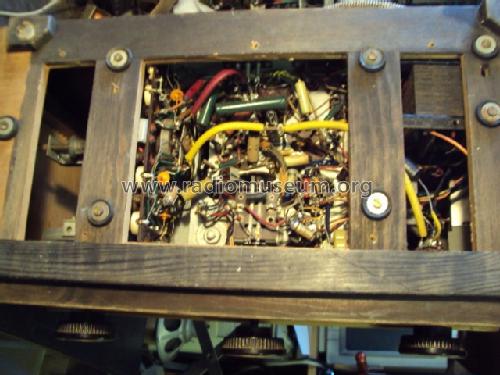

• Model: 5W649M - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 370 x 250 mm / 20.5 x 14.6 x 9.8 inch

• Notes
• 3 gespreitzte Kurzwellenbänder Anschlußmöglichkeit für UKW-Zusatzgerät. Anschlußmöglichkeit für entstörte Blaupunkt-Spezialantenne AT49

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 498.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 2

• Mentioned in
• Funkschau (4914)
