For model ACR845 7.634.804, Blaupunkt (Ideal), Berlin, später Hildesheim:

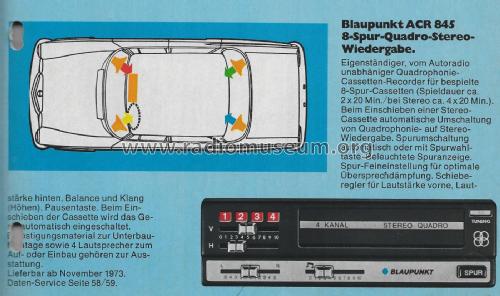

Q: Blaupunkt, Produkt-Katalog '74

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1973/1974 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 26: 2SC644 2SC828 2SC1317 2SC1226 or. 2SC1096 2SA699 or. 2SA634 2SA643
Details Cassette-Recorder or -Player
Power type and voltage Powered by external power supply or a main unit. / 12 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: ACR845 7.634.804 - Blaupunkt Ideal, Berlin,
Material Metal case
Dimensions (WHD) 185 x 55 x 190 mm / 7.3 x 2.2 x 7.5 inch
Notes

Dioden: 5 Automat.Umschaltung von Quadrofonie auf Stereo durch Codierung am Cassettengehäuse.

Halbleiter teilweise mehrfach vorhanden.

External source of data Erb
Source of data Katalog RFP 1973
