ACR900 7.632.900 ab Nr. 1835001

ACR900 7.632.900; Blaupunkt Ideal, (ID = 396030) R-Player

ACR900 7.632.900; Blaupunkt Ideal, (ID = 396031) R-Player

ACR900 7.632.900; Blaupunkt Ideal, (ID = 396032) R-Player

ACR900 7.632.900; Blaupunkt Ideal, (ID = 396034) R-Player

ACR900 7.632.900; Blaupunkt Ideal, (ID = 396036) R-Player
ACR900 7.632.900; Blaupunkt Ideal, (ID = 2390425) R-Player ACR900 7.632.900; Blaupunkt Ideal, (ID = 2390427) R-Player
ACR900 7.632.900; Blaupunkt Ideal, (ID = 396174) R-Player
Use red slider bar for more.
ACR900 7.632.900; Blaupunkt Ideal, (ID = 2390425) R-Player
Blaupunkt Ideal,: ACR900 7.632.900 [R-Player] ID = 2390425 1200x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model ACR900 7.632.900 ab Nr. 1835001, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q: Blaupunkt, Katalog 1972

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1972–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC238 BC238 BC238 BC338 S153T BC308 BC238 BC238 1N4148 ZPD9,1
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: ACR900 7.632.900 [ab Nr. 1835001] - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 138 x 55 x 154 mm / 5.4 x 2.2 x 6.1 inch
Notes Mono-Wiedergabegerät in Verbindung mit einem Auto-Radio.
Source of data Handbuch VDRG 1977/1978

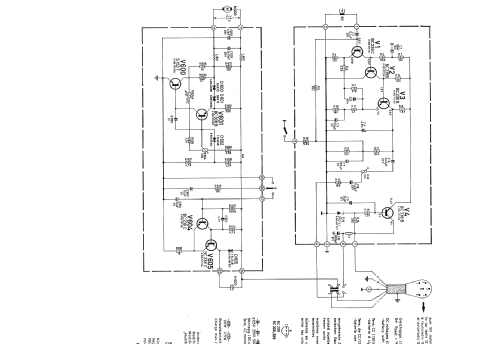

Literature/Schematics (1) -- Original-techn. papers. (VKD 372.04.026.20)

Model page created by Richard Winter. See "Data change" for further contributors.
