ZPD9,1

Information - Help
ID = 45725

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Power-supply
Identical to ZPD9,1

Base Wires
Filament Solid State
Description

Material/Aufbau/Pol.: Silizium Zenerdiode;
Form/Case/Outline: Allglas DO-35;
Daten/electr.data: I F: __ A, U F: __ V, Isp: __ µA, N: 500 mW, Iz max: 5 mA, Uz: 9.1 V (+/- 5%), f g(FT): __ MHz, tmax j: __ °C.
-


Dimensions (WHD)
incl. pins / tip
6 x 3 x mm / 0.24 x 0.12 x inch
Weight 1 g / 0.04 oz

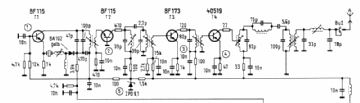

  ZPD9,1: Funkschau 8/73 S.264
Egon Strampe

ZPD9,1: scc
Christian Schaufelberger


ZPD9,1: DVT 1971 ECA
Günther Stabe


ZPD9,1: ITT, Dioden, 1977/78
Michael Schlör


Usage in Models 3= 1972 ; 4= 1974 ; 1= 1975? ; 3= 1975 ; 9= 1976 ; 1= 1977?? ; 2= 1977? ; 2= 1977 ; 1= 1978??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):26
