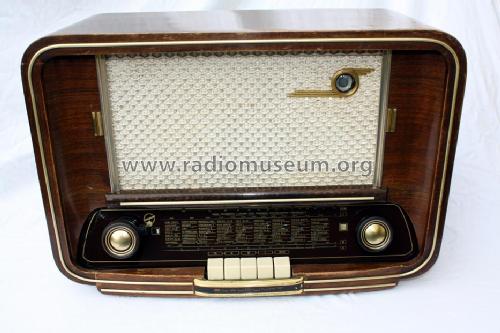

Ballade F525UH

Ballade F525UH; Blaupunkt Ideal, (ID = 97150) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 97151) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 97152) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 97153) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 97154) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 97155) Radio

Ballade F525UH; Blaupunkt Ideal, (ID = 11136) Radio

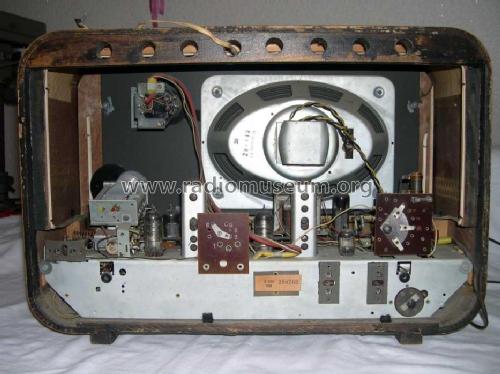

Ballade F525UH; Blaupunkt Ideal, (ID = 226038) Radio Ballade F525UH; Blaupunkt Ideal, (ID = 475133) Radio
Ballade F525UH; Blaupunkt Ideal, (ID = 97149) Radio Ballade F525UH; Blaupunkt Ideal, (ID = 475131) Radio
Ballade F525UH; Blaupunkt Ideal, (ID = 475132) Radio Ballade F525UH; Blaupunkt Ideal, (ID = 475134) Radio
Ballade F525UH; Blaupunkt Ideal, (ID = 475135) Radio Ballade F525UH; Blaupunkt Ideal, (ID = 475136) Radio
Ballade F525UH; Blaupunkt Ideal, (ID = 673116) Radio Ballade F525UH; Blaupunkt Ideal, (ID = 2590467) Radio
Use red slider bar for more.
Ballade F525UH; Blaupunkt Ideal, (ID = 226038) Radio
Blaupunkt Ideal,: Ballade F525UH [Radio] ID = 226038 400x295
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ballade F525UH, Blaupunkt (Ideal), Berlin, später Hildesheim:
Ebay.de

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UF80 UCH81 UAF42 UAA11 UM11 UL41
Semiconductors (the count is only for transistors) E220C80
Main principle Superheterodyne (common); ZF/IF 450/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Ballade F525UH - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 349 x 214 mm / 19.7 x 13.7 x 8.4 inch
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Price in first year of sale 298.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53

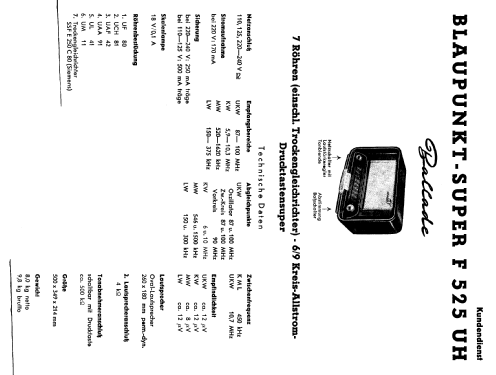

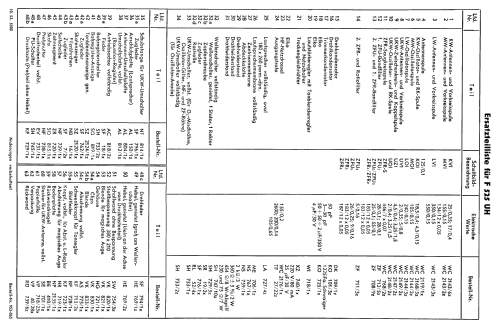

Literature/Schematics (1) -- Original-techn. papers.
