Bari II de Luxe (2) 2461

Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 954694) Radio Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 954692) Radio
Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 954691) Radio Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 653424) Radio
Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 653426) Radio Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 653425) Radio
Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 653427) Radio Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 822646) Radio
Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 822647) Radio Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 822648) Radio
Use red slider bar for more.

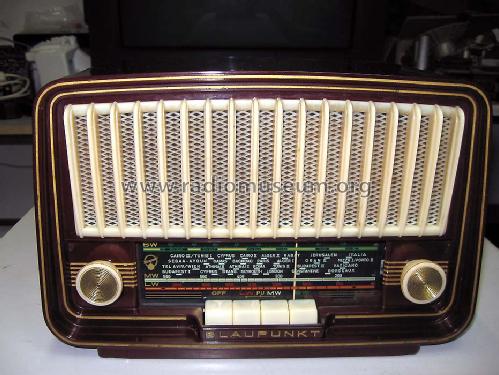

Bari II de Luxe 2461; Blaupunkt Ideal, (ID = 954694) Radio
Blaupunkt Ideal,: Bari II de Luxe 2461 [Radio] ID = 954694 933x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bari II de Luxe (2) 2461, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL82 AZ41
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Bari II de Luxe 2461 - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 290 x 190 x 160 mm / 11.4 x 7.5 x 6.3 inch
Notes Blaupunkt Bari II de Luxe is an export model.
It has a "Hot Chassis", use isolation transformer when working on this radio!
Built-in loop antenna.
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
