Berlin electronic (ASU) Arimat de Luxe 7.636.750 ab 430001

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428751) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428620) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428621) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428622) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428623) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428624) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428625) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428626) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428627) Car Radio

Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 428781) Car Radio
Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1143778) Car Radio Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1143779) Car Radio
Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1143777) Car Radio Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1143780) Car Radio
Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1939621) Car Radio Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 2079882) Car Radio
Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 2079883) Car Radio
Use red slider bar for more.
Berlin electronic Arimat de Luxe 7.636.750 ab 430001; Blaupunkt Ideal, (ID = 1143778) Car Radio
Blaupunkt Ideal,: Berlin electronic Arimat de Luxe 7.636.750 ab 430001 [Car Radio] ID = 1143778 812x733

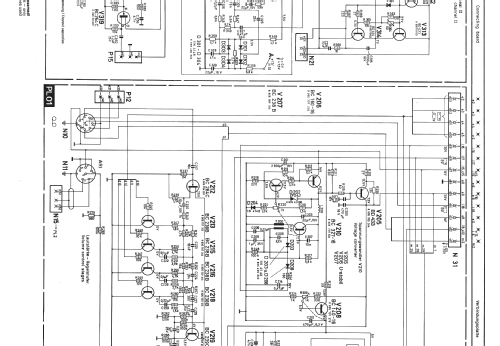

Select picture or schematic to display from thumbnails on the right and click for download.
For model Berlin electronic (ASU) Arimat de Luxe 7.636.750 ab 430001, Blaupunkt (Ideal), Berlin, später Hildesheim:
Bedienteil im Betrieb; LED-Skala

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1978 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 129: AF106 BF254 BF256 BF450 BF451 BF540 BC237 BC238 BC239 BC264 BC307 BC308 BC309 BC140 BC160 BC172 BC327 BC328 BD433 BD434 1N4148 AA119 BB113 SAS560 SAS570 µA758 UAA170 SN74123 SN74191 BC413 BC338 BD533 BB103 Diode_LED
Main principle Superhet with RF-stage
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Berlin electronic Arimat de Luxe 7.636.750 ab 430001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Notes ICs: UAA170, SAS560, SAS570, µA758, 74123, 74191.
Gerät besteht aus Bedienteil mit Schwanenhals (4 Trans.), Steuergerät (99 Trans.) und - optionalen - Kassettenrecorder Berlin ACR (26 Trans.).
Das Steuergerät mit ARI-Anschlussbuchse; Festsender: LW, 2× MW, KW, 2× UKW. Sendersuchlauf und Lautstärkeregelung über Wipptasten; Ausgangsleistung 2× 5 W Sinus an 4 Ohm.
Die Speisung des Kassettenteils erfolgt über das Steuergerät; Mikrofonaufnahme (z.B. Diktat) über mitgeliefertes Mikrofon.
Collectors' prices
Source of data Handbuch VDRG 1977/1978
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Günther Stabe. See "Data change" for further contributors.
