• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28265

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

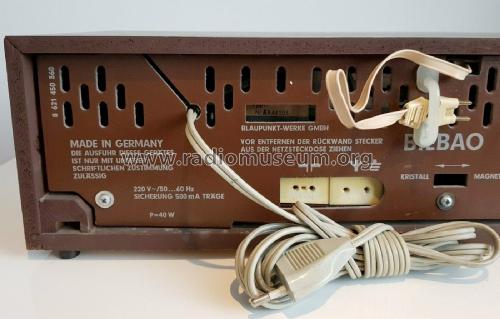

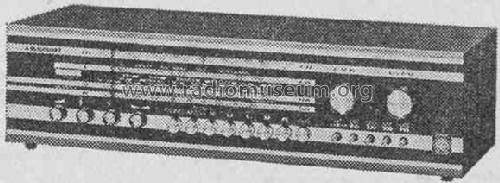

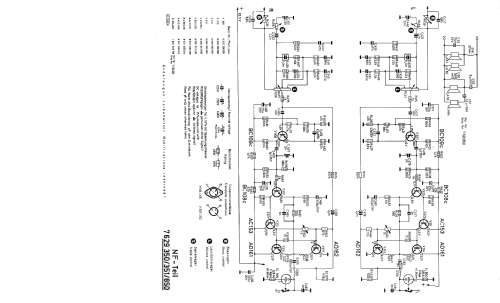

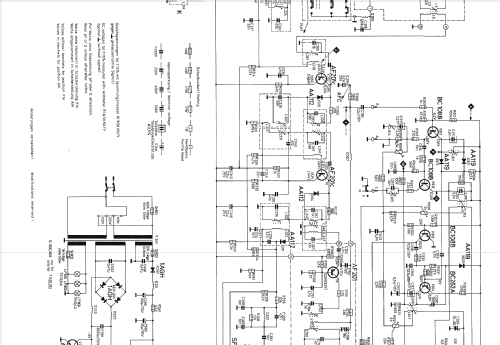

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• BF185 BF185 BC108 BC108 BC108 BC262 AF126 AF201 AF201 AF201 AF201 BC109 BC109 BC108 AC153 AD161 AD162 BC109 BC108 AC153 AD162 AD161 BC107 AD143 BB103 BAY17 AA112 AA119 SFD037 ZG8,2 ZD22 1AGH

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bilbao 7.629.350 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 130 x 200 mm / 19.7 x 5.1 x 7.9 inch

• Notes

• Dioden: 23.
  Vollstereo, NF-Verstärker mit zwei Endstufen je 8 W.

  Dioden teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1969/1970

• Literature/Schematics (1)

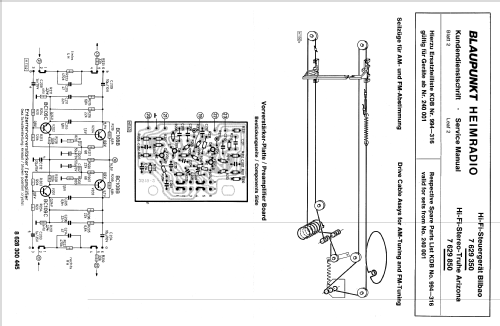

• -- Original-techn. papers. (Service Manual, KDB 270.04.008.20)

• Other Models

• Here you find 3548 models, 3234 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
