ZG8,2

Information - Help
ID = 46313

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Solid-State-Diode   Power-supply
Identical to ZG8,2
Similar Tubes
Other base:
  Z8
Predecessor Tubes Z8

Base Wires
Description Material/Aufbau: Silizium Zener-Diode;
Form/Case: Allglas DO-7, Kathode = Ring;
Daten/electr.data: I F: 250 mA; U F: 1 V; I sp: 1 µA; U sp: _ V; N: 250 mW; Imax: 35 mA; Umax: 8,2 V +/- 10 %; tmax j: 150 °C;
Ähnlich: BZY85/C8V2, BZY88/C8V2, ZF8,2 -
Dimensions (WHD)
incl. pins / tip
7 x 3 x mm / 0.28 x 0.12 x inch
Weight 1 g / 0.04 oz
Information source - - -
- - -
- - -
- - -

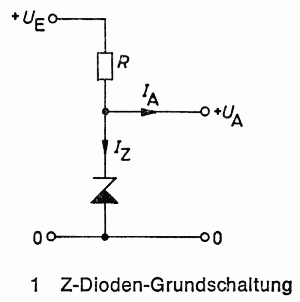

ZG8,2: ITT Schaltbeispiele 1967
Günther Stabe † 19.8.20

do7_88.gif ZG8,2: DVT 1971 ECA
Günther Stabe † 19.8.20

Usage in Models 1= 1969 ; 6= 1970 ; 2= 1971

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):9
