For model Derby 21500 Serie E ab 180001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC615 OC615 OC614 AF105a AF105 OC75 OC71 OC74 OC74 OA79 OA79 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

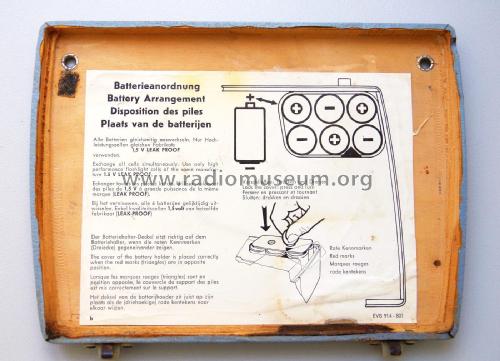

Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Derby 21500 Serie E [ab 180001] - Blaupunkt Ideal, Berlin,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 273 x 198 x 86 mm / 10.7 x 7.8 x 3.4 inch
Notes

Zu diesem Modell passt die Auto-Halterung Typ 85530 zu DM 28,-

Im Hdb. des Rundfunk- und Fernseh-Grosshandels nur als Blaupunkt Derby bezeichnet.
Komplett mit Haltevorrichtung dort als Derby H zu DM 327,- angeboten.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Collectors' prices
Mentioned in HdB d.Rdf-& Ferns-GrH 1961/62 (S. B6)
Literature/Schematics (1) Handbuch RFP 1961/62 (S. 227)
Literature/Schematics (2) -- Original-techn. papers.

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
