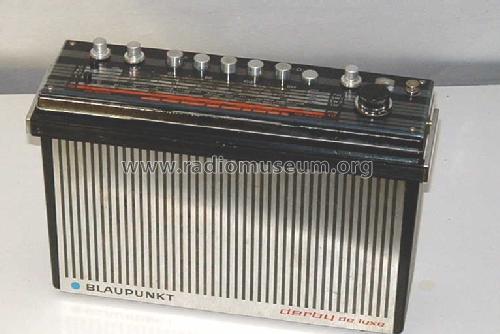

Derby de Luxe 7.658.730; Blaupunkt Ideal, (ID = 51456) Radio
Blaupunkt Ideal,: Derby de Luxe 7.658.730 [Radio] ID = 51456 766x513
Select picture or schematic to display from thumbnails on the right and click for download.
For model Derby de Luxe 7.658.730, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF201 AF201 AF121 AF126 AF126 AC151 BC108 AC153 AC176
Main principle Super-Heterodyne (Super in general); ZF/IF 452 or 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1,5 / DC: 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Derby de Luxe 7.658.730 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 281 x 193 x 79 mm / 11.1 x 7.6 x 3.1 inch
Notes

Bei Betrieb im Auto über Autohalterung HV580 oder HV600 aus 12-V-Autobatterie beträgt die Ausgangsleistung 3 W. Netzbetrieb mit zusätzlichem Netzteil 9 V möglich.

Geräte mit besonderer Kennzeichnung haben ZF = 452 kHz.

Siehe auch Exportversion Derby de Luxe US 7.658.734.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 265.00 DM
Collectors' prices
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb

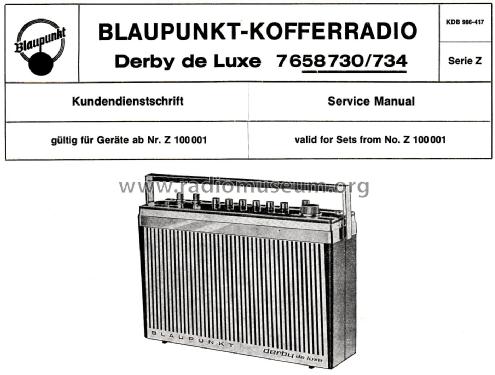

Literature/Schematics (1) -- Original-techn. papers.
