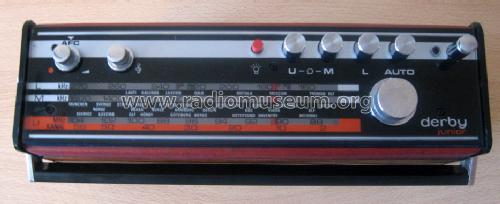

Derby Junior
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187998
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- BF184 BF184 BF184 BF184 BF185 BF185 BC171 BC251 AC117 AC175 BA102 AA116 AA116 AA119 AA119 2,1St1
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Derby Junior - Blaupunkt Ideal, Berlin,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 180 x 80 mm / 10.8 x 7.1 x 3.1 inch
- Notes
-

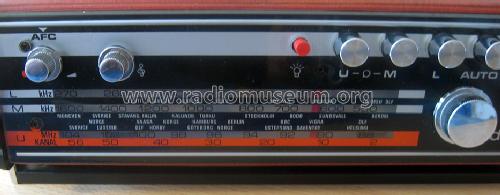

Dieses Modell ist in keinem Prospekt von Blaupunkt zu finden. Es wurde wahrscheinlich für Skandinavien produziert (siehe Stationsnamen auf der Skala).
Modell von Salora für Blaupunkt gefertigt, siehe auch auch Salorita 3A
- Net weight (2.2 lb = 1 kg)
- 1.750 kg / 3 lb 13.7 oz (3.855 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
