• Year
  • 1949 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 135851
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org

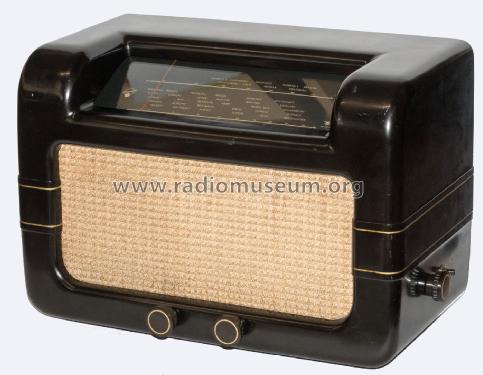

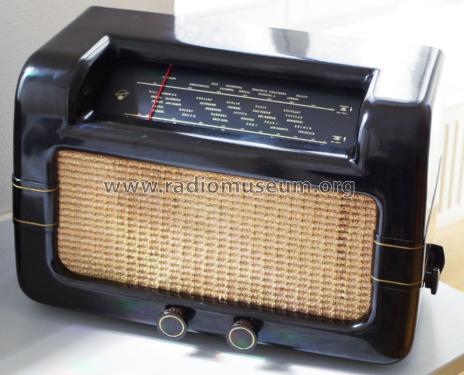

  • Model: E110U - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 475 x 330 x 245 mm / 18.7 x 13 x 9.6 inch
  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Price in first year of sale
  • 133.00 DM
  • Author
  • Model page created by Hubert Gräber. See "Data change" for further contributors.
