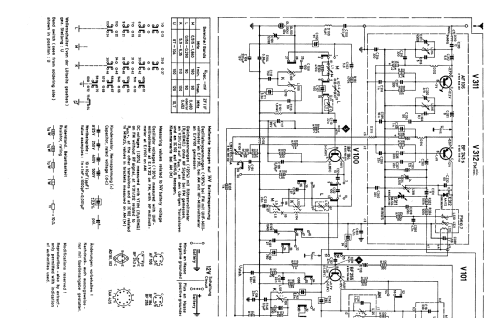

Essen IC 7.639.209 ab 2860001

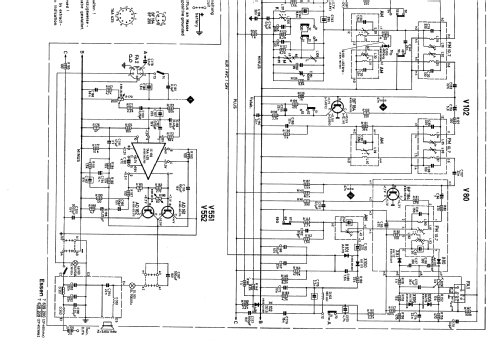

Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288003) Car Radio

Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288004) Car Radio

Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288005) Car Radio

Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288006) Car Radio
Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 1762808) Car Radio Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288549) Car Radio
Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 288550) Car Radio Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 1514570) Car Radio
Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 2387898) Car Radio Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 2387899) Car Radio
Use red slider bar for more.
Essen IC 7.639.209 ab 2860001; Blaupunkt Ideal, (ID = 1762808) Car Radio
Blaupunkt Ideal,: Essen IC 7.639.209 ab 2860001 [Car Radio] ID = 1762808 1400x946
Select picture or schematic to display from thumbnails on the right and click for download.
For model Essen IC 7.639.209 ab 2860001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1969–1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF106 BF243 BF184 BF255 BF184 BF184 AD161 AD162 TAA435 BA124 AA112 AA119
Main principle Superhet with RF-stage; ZF/IF 452/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Essen IC 7.639.209 ab 2860001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 147 mm / 7 x 2 x 5.8 inch
Notes

AM-ZF: 4 LC-Kreise mit zusätztlichem Piezo-Filter.
Erstmaliger Einsatz einer integrierten Schaltung TAA435 (NF-Vor- und Treiberstufe) in einem Blaupunkt-Autoradio.

Dioden teilweise mehrfach vorhanden.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data Handbuch VDRG 1969/1970
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
