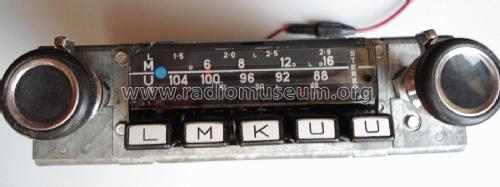

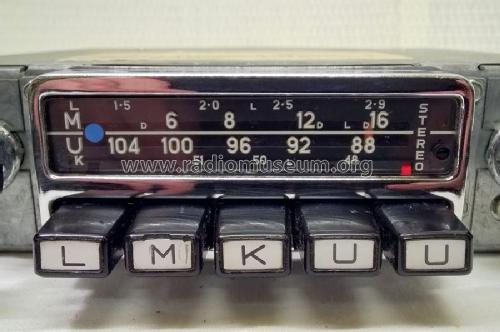

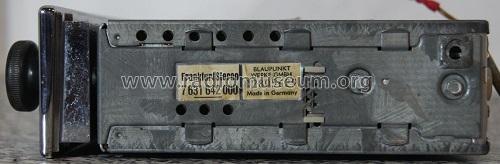

Frankfurt Stereo 7.631.642 ab 2800001; Blaupunkt Ideal, (ID = 2390485) Car Radio
Blaupunkt Ideal,: Frankfurt Stereo 7.631.642 ab 2800001 [Car Radio] ID = 2390485 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frankfurt Stereo 7.631.642 ab 2800001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1971–1973 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 24: SB100 BF340 BF243 BF243 BF243 BF243 BF243 BC183 BC148 BC148 BC148 BC148 BC258 BC183 BC172 BC172 S2066 AD161 AD162 BC172 BC172 S2066 AD161 AD162
Main principle Superhet with RF-stage; ZF/IF 460 or 452/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Frankfurt Stereo 7.631.642 ab 2800001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 160 x 50 x 180 mm / 6.3 x 2 x 7.1 inch
Notes

NF-Verstärker mit zwei Endstufen je 4 W.
Polarität umlötbar Minus oder Plus an Masse.
Stereo-Decoder eingebaut, Mono-Stereo-Umschaltung automatisch und manuell.
Anschlüsse für Stereo-TB und Automatikantenne.
Im VDRG-Handbuch 1972/73 mit 25 Transistoren geführt.

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
Mentioned in Handbuch VDRG 1972/1973

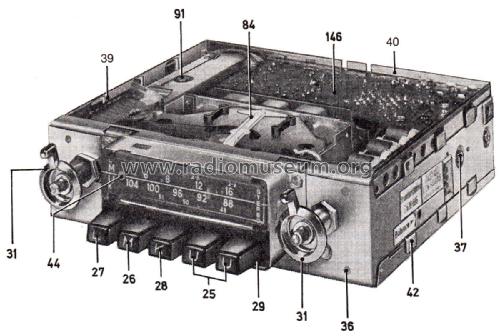

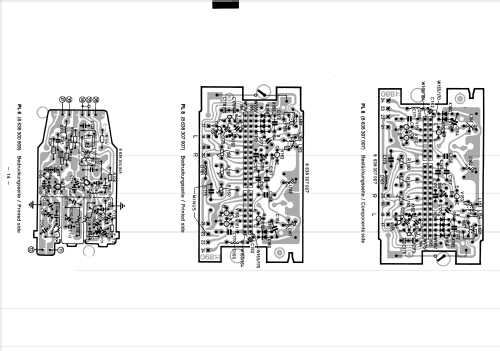

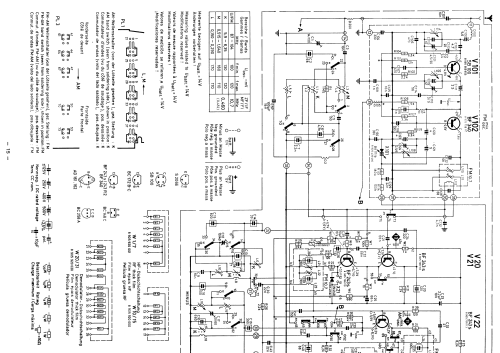

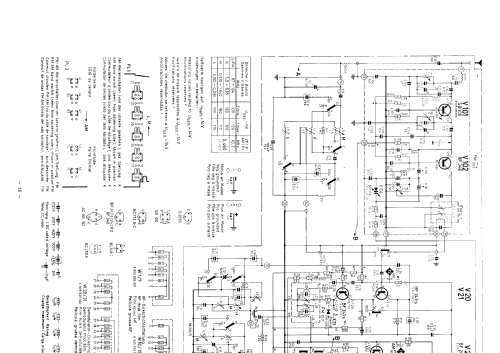

Literature/Schematics (1) -- Original-techn. papers.
