Hannover MW 2 × KW mit Noval-Röhren

Hannover MW 2 × KW mit Noval-Röhren; Blaupunkt Ideal, (ID = 314840) Car Radio Hannover MW 2 × KW mit Noval-Röhren; Blaupunkt Ideal, (ID = 349544) Car Radio
Use red slider bar for more.
Hannover MW 2 × KW mit Noval-Röhren; Blaupunkt Ideal, (ID = 314840) Car Radio

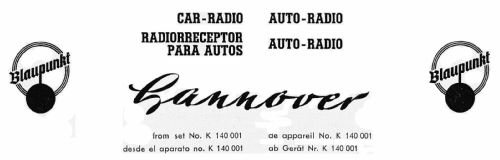

Blaupunkt Ideal,: Hannover MW 2 × KW mit Noval-Röhren [Car Radio] ID = 314840 458x214
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hannover MW 2 × KW mit Noval-Röhren, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1956/1957 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF89 ECH81 EF89 EBF89 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Hannover MW 2 × KW mit Noval-Röhren - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 76 x 168 mm / 7.2 x 3 x 6.6 inch
Notes 2-teilig. Stromversorgungsteil 187×117×73 mm.
KW1 5,9-6,4 MHz, KW2 9-10,1 MHz.
Price in first year of sale 249.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
