• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1957/1958

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 21443

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF89 ECH81 EF89 EBF89 EL84

• Number of Transistors

• Semiconductors
• SM702/1z or. SM702/2z B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

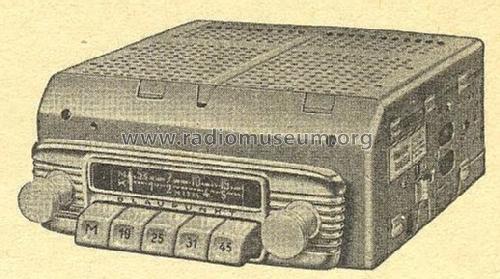

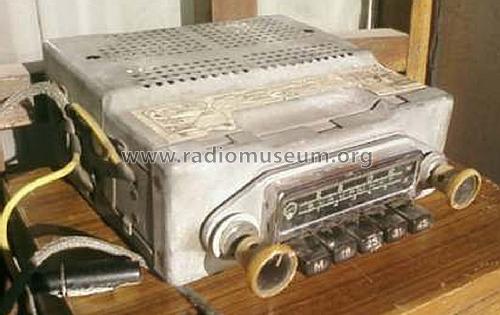

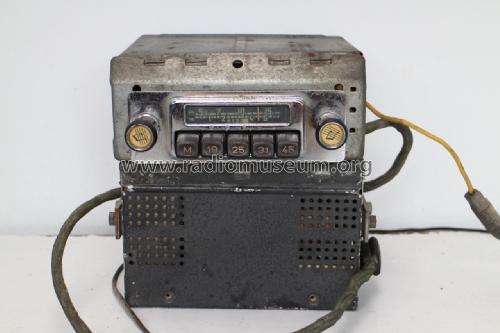

• Model: Hannover II ab S 650001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Technische Daten wie Hannover I, jedoch mit den Kurzwellenbändern 19 m, 25 m, 31 m und 45 m.

• Price in first year of sale
• 279.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• -- Original-techn. papers.
