• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1977/1978

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 318144

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

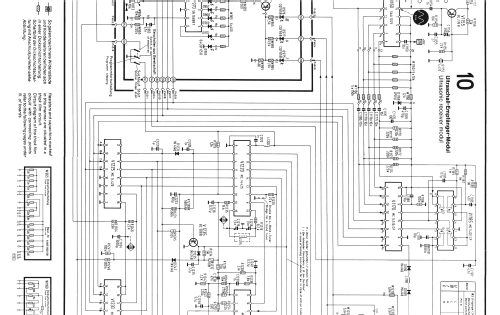

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A51-263X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jamaica UP 16 7 667 000 Ch= FM100K - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 594 x 402 x 447 mm / 23.4 x 15.8 x 17.6 inch

• Notes

• Farbfernsehgerät 51cm Precision-In-Line Bildröhre 90°

  Elektronischer Suchlauf mit Speicherung von 16 Programmen

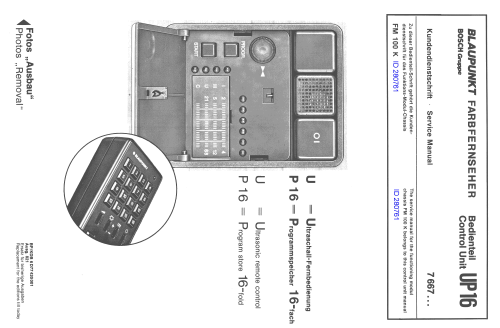

  Ultraschall Fernbedienung für 16 fache Programm-Direktwahl

   Gehäuse silber-metallic oder anthrazit-metallic

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Mentioned in
• -- Original prospect or advert (Blaupunkt Prospekt 1977/78)

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
